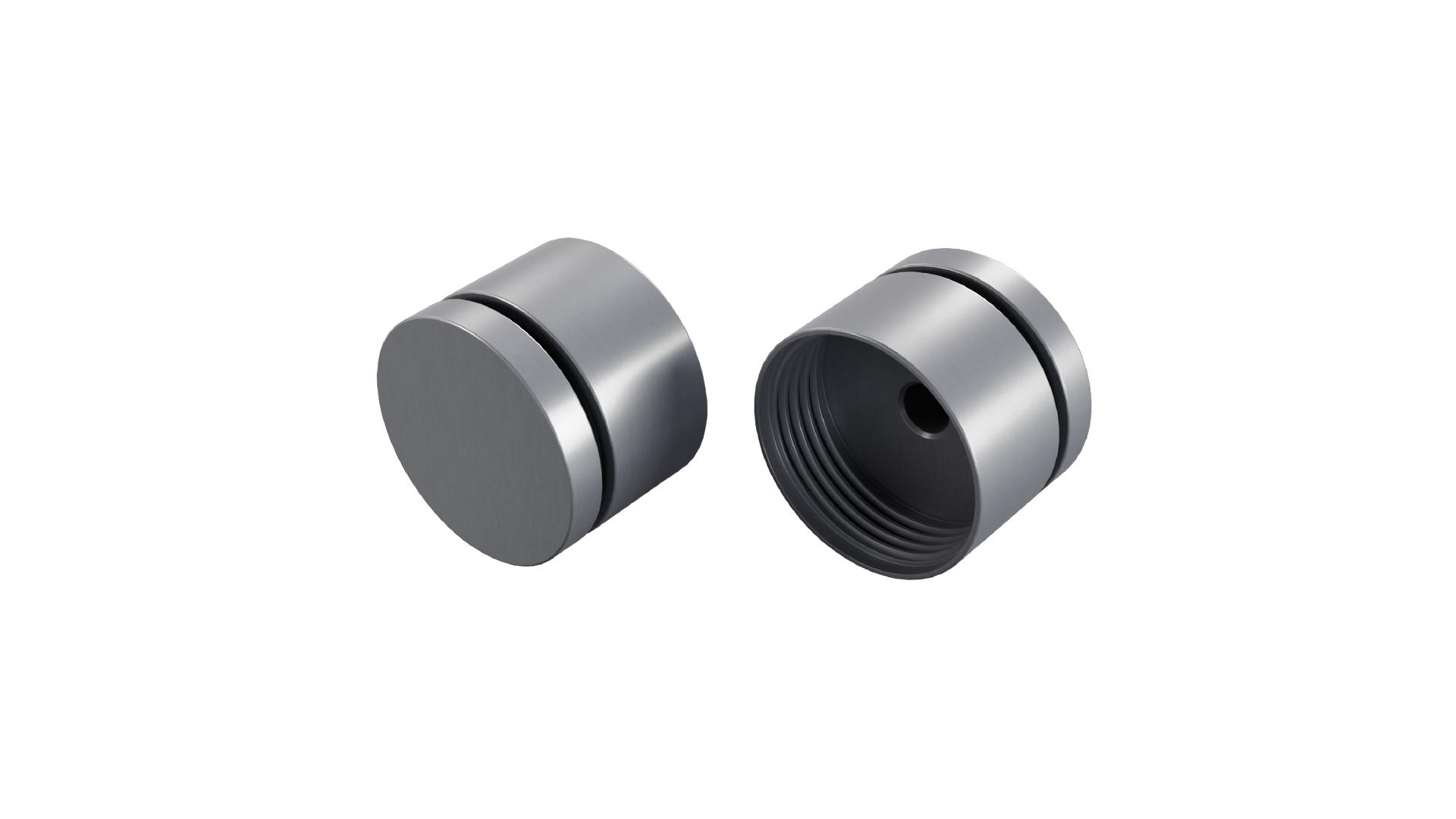

LUMINES SFERO ALU end cap MS2 anodized silver set
12-2385-11 EAN: 5904405995426

LUMINES SFERO ALU end cap MS2 anodized silver set

Stock status:
to be confirmed by the account manager after ordering
End cap materials Aluminum
End cap shapes No hole
End cap shapes SFERO MS2
End cap colors Silver
System SFERO

Catalog card
End cap colors
Silver
Black
Available variants:

System

End cap materials

End cap shapes

Incorrect number of products in the package

There is no complete package: products

Cancel
Complete with the missing quantity
Product sold only as a complete set

Unfortunately, the following products are missing: products

Cancel
Complete the missing quantity
Similar products in Special offer
Close

Product description

Dedicated decorative aluminium end caps for the LUMINES SFERO profile.


Available versions:

  • SFERO MS1 (with a hole for the power supply cable or without a hole) for mounting the profile as a suspended luminaire in a vertical orientation (perpendicular to the ceiling), using an M10x1 4 mm threaded metal strain relief.
  • SFERO MS2 (with a hole for the power supply cable or without a hole) for mounting the profile as a suspended luminaire in a horizontal orientation (parallel to the ceiling), as well as for surface mounting using the SFERO MS2 mounting clip.
  • SFERO MS3 for mounting the SFERO profile to the wall on one side and suspending it on a suspension cable on the other side (using the MS2 end cap).



Color variants:

  • silver anodized,
  • black anodized.



Installation instructions for the SFERO LED profile using: (1) M10×1 4 mm metal cable lock, (2) SFERO MS1 end cap with a hole, (3) SFERO MS1 end cap without a hole.

Installation instructions for the SFERO LED profile using: (1) SFERO MS2 metal clips, (2) two-piece SFERO MS2 end caps.



Installation effect of the SFERO LED profile using: SFERO MS2 metal clips and a two-piece SFERO MS2 end cap.



Installation diagram of the lighting system components using the SFERO LED profile and: (1) SFERO FLEX light source, (2) two-piece SFERO MS2 end caps without holes, (3) SFERO MS2 metal clips.



Installation diagram of the lighting system components using the SFERO LED profile and: (1) SFERO FLEX light source, (2) two-piece SFERO MS2 end caps without holes, (3) suspension cables.



Installation instructions for the SFERO LED profile using: (1) two-piece SFERO MS3 end cap, (2) two-piece SFERO MS2 end cap, (3) suspension cables.



Installation effect of the SFERO LED profile using: two-piece SFERO MS3 end cap, two-piece SFERO MS2 end cap, and suspension cables.
